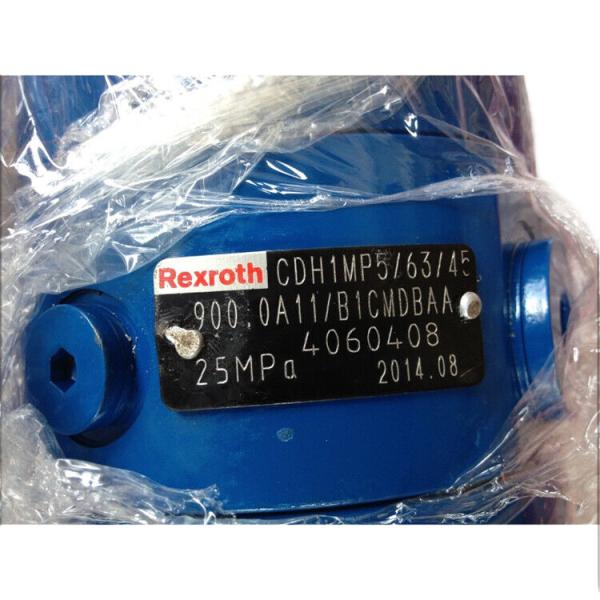

    Rexroth Hydraulic Cylinders CDH1MP5 Heavy Duty Ram

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : CDH1MP5/63/45/9000A11/B1CMDBAA
    Certification : CC
    Price : RMB/100-1000/PC
    Payment Terms : T/T
    Supply Ability : 10PC/DAY
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Hydraulic Cylinders CDH1MP5 Heavy Duty Ram

    Product Description:


    Rexroth Heavy Duty Hydraulic Cylinder CDH1MP5/63/45/9000A11/B1CMDBAA is a hydraulic cylinder product manufactured by Rexroth:piston type heavy-duty hydraulic cylinder, usually used in industrial applications where high loads and high working pressures are required. These hydraulic cylinders are suitable for a wide range of industrial machinery and equipment, such as construction machinery, heavy machinery, metallurgical equipment and so on. Designed for high load capacity and durability, Rexroth's hydraulic cylinders are capable of providing reliable performance under harsh operating conditions.


    Spare parts and services: Rexroth also offers a wide range of spare parts and services related to hydraulic cylinders, such as universal joints, seals, mounting plates, and maintenance instructions.Please observe the maximum operating speeds specified in the table (recommended flow rate in the orifice connection: 5 m/s). Higher operating speeds are available on request. If the drive-out speed of the piston rod is much higher than the drive-in speed, this may result in carry-out losses of the medium. Please consult us if required.


    Mechanical alignment of the axes of motion must be ensured, so that mechanical alignment of the mounting points of the hydraulic cylinders and piston rods can be ensured. Lateral forces acting on the piston rod and piston guide ring should be avoided. The weight of the hydraulic cylinder (MP3/MP5 or MT4) or the piston rod may have to be taken into account. The bending length/bending load of the piston rod and/or the hydraulic cylinder must be observed.


    BrandREXROTH
    Product TypeHydraulic Cylinder
    Designed ForISO 10100:2001
    Product CodeCDH1MP5/18/110/1600A3X/B11CADMW
    Optimum Viscosity Range20 to 100 mm2/s
    ColorGentian blue RAL 5010
    MaterialSteel
    Hydraulic FluidsMineral Oils HL according to DIN 51524,
    HLP/Oil-in-water Emulsions HFA/
    Water glycol HFC/
    Phosphoric Acid Esters HFD-R/
    Fatty Acid Esters HFD-U
    Maximum Working Pressure315 bar
    Failure Rate≤5%
    Piston Diameter (ØAL)40 to 320 mm
    Mounting PositionAny
    Maximum Permissible ContaminationISO 4406 (c) class 20/18/15

    Rexroth Hydraulic Cylinders CDH1MP5 Heavy Duty Ram
