    Rexroth Direction Valve 4WE6E70/HG24N9K4 Unleash The Full Potential Of Your Hydraulic System

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WE6E70/HG24N9K4
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WE6E70/HG24N9K4 Unleash The Full Potential Of Your Hydraulic System

    Product Description

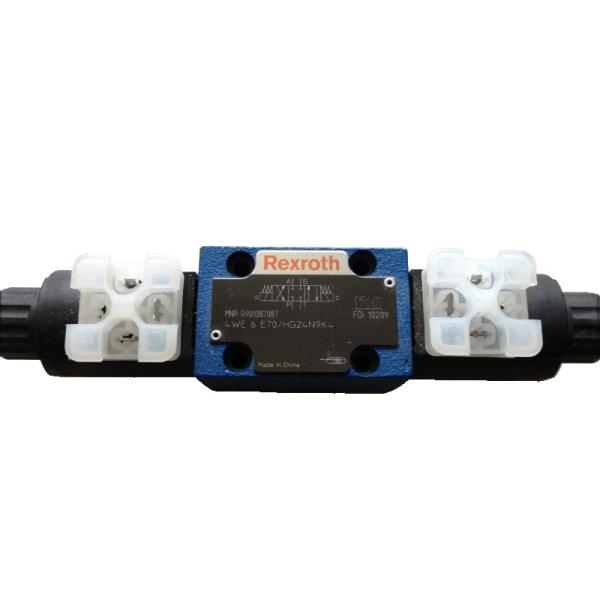

    The Bosch Rexroth 4WE6E7X/HG24N9K4 (R901087087) is a high-performance industrial hydraulic valve designed for subplate mounting, featuring a size 6 CETOP D interface and an ISO 4401-03-02-0-05 connection diagram. This directional spool valve is solenoid-actuated, with a symbol E spool type that enables reliable switching of oil flow direction. It boasts direct actuation with a maximum pressure rating and accommodates a maximum flow rate. Equipped with wet-pin DC solenoids, the 4WE6E7X/HG24N9K4 valve guarantees efficient operation and control of the start, stop, and direction of fluid flow. The solenoid coils are rotatable and replaceable without compromising the pressure-tight chamber, ensuring easy maintenance.


    Additionally, this model includes a concealed manual override for situations where solenoid energization is not possible or desired. The valve features two switching positions and comes with an electrical connection that includes a connector pole PE according to EN standards. Designed to work with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC, it ensures compatibility with a broad range of hydraulic systems. The seals are made from NBR (nitrile butadiene rubber), contributing to the durability and reliability of the valve in demanding applications. The Bosch Rexroth 4WE6E7X/HG24N9K4 valve's construction includes a housing, one or two solenoids depending on the configuration, a control spool operated by the solenoids, and return springs that maintain the spool's position when deenergized. The unit requires a supply voltage of 24 VDC to function correctly and has been engineered to meet standard operational requirements while offering ease of installation and serviceability.


    BrandRexroth
    Model4WE6E70/HG24N9K4
    Type of connectionSubplate mounting
    Connection diagram NFPANFPA T3.5.1 R2-2002 D03
    Size_CETOPD03
    Connection diagramISO 4401-03-02-0-05
    Supply voltage24 VDC
    Number of switching positions3
    Weight1.580
    SealsNBR

    Rexroth Direction Valve 4WE6E70/HG24N9K4 Unleash The Full Potential Of Your Hydraulic System


    FAQ


    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.


    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.


    Q3: What's your payment terms ?
    A3: By T/T,LC AT SIGHT,100% full payment.


    Q4: How long is your production lead time?
    A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.


    Q5: When can I get the quotation ?
    A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

    Quality Rexroth Direction Valve 4WE6E70/HG24N9K4 Unleash The Full Potential Of Your Hydraulic System for sale
